Automatic PE/PP Zipper Lock Bag Making Machine Of Plastic
The machine is suitable for making zipper bags.
The machine equipped with side sealing zipper device,ultrasonic,automatic zipper and no material alarm.
The machine main control center adopts PLC and touch screen to display bag making speed,bag making length setting and automatic bag making counting.
The main drive and feeding are controlled by servo motor.
Main Technical Parameters
| Material | LDPE,HDPE etc. |
| Unwinding Width | ≤1200mm |
| Unwinding Diameter | ≤800mm |
| Bag Width | ≤500mm |
| Bag Length | ≤550mm |
| Machine Speed | 150pcs/min |
| Bag Speed | 300-400m 100pcs/min |
| Power Supply | 380V50Hz |
| Total Power | 10.5KW |
| Dimension | 6020*1400*1650mm 2000*1200*1150mm 1860*850*1200mm |
| Machine Weight | 2200KG |

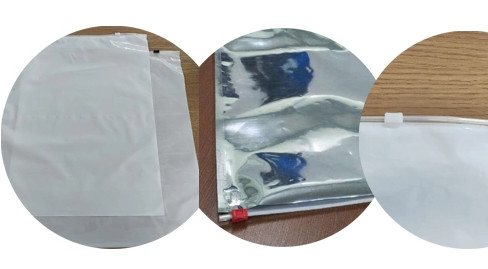

Pictures as reference
Detailed Images
About Us
Jiangyin ShiXuan Machinery is an integrated company which has gathered development, researching, manufacturing and marketing together. The company abides by the purpose of ′Innovation drives development, quality wins the market′.
Our company can supply customized service for global customers. According to customers′ demand, we can design products and supply long term integrative service of producing, installing and debugging. For service, our company can supply long term technical.
FAQ
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 5days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also car fare.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
